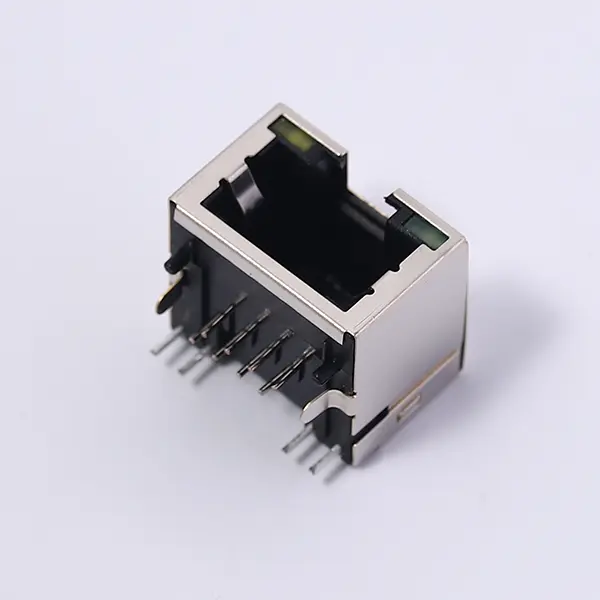

56Ewith LED

Intuitive Status Display, Effortlessly Grasp Network Conditions​ This RJ45 LED network port connector is equipped with eye-catching LED indicators. When the green LED light stays on, it indicates that the current network speed is 100M; when the green light is off, it means the current network speed is 10M. The flashing status of the yellow LED light reflects data transmission activities. When the yellow light flashes rapidly, it indicates that data is being transmitted; when the yellow light is off, it means there is no data transmission. By observing the status of the LED lights, you can quickly determine the status and speed of the network connection. For example, if the green light is on and the yellow light does not flash, it means the network connection is high-speed and stable; if the green light is off and the yellow light is flashing, it indicates that the network connection is slow or unstable. In practical applications, especially in scenarios where frequent monitoring of network connection status is required, these indicators can provide you with great convenience and help you promptly identify and resolve network issues.​

High-Quality Performance, Ensuring Stable and High-Speed Connections​ The RJ45 LED network port connector is specifically designed for the interconnection of Ethernet network devices. It is compatible with various network cables such as Cat5e, Cat6, or Cat6a, and supports high-speed data transmission. It can be widely used in scenarios such as connecting personal computers to routers for network access, data exchange between servers, and communication between switches and network terminals. Its internal components feature high-quality phosphor bronze terminals, which offer excellent electrical conductivity and good plugging and unplugging resistance. The plastic materials used are ABS RESIN or glass fiber-filled PBT that meet the UL94V-0 standard, boasting excellent flame retardancy and stability. The shielding shell is made of brass and nickel-plated, which can effectively shield electromagnetic interference, ensuring the stability and integrity of signal transmission. The rated current of this connector is 1.5AMPS, the rated voltage is 125VAC, the insulation resistance is not less than 500MΩ, the operating temperature range is -40°C - 85°C, the withstand voltage can reach AC 1000V at 50Hz or 60Hz for 1 minute, and the contact resistance is not more than 20MΩ. With outstanding performance in all parameters, it can meet your network connection requirements in various environments.

Wide Device Compatibility, Adaptable to Diverse Application Scenarios​ Whether it's desktop computers or laptops accessing a wired network through RJ45 interfaces, routers and switches using RJ45 connectors to manage local area network device connections, or network storage devices (NAS) achieving fast data sharing with its help, this RJ45 LED network port connector can perfectly adapt. In data centers, it can work with high-performance network cables to handle high-speed data transmission between servers. In the field of industrial automation, intelligent sensors, industrial PCs, and other devices in factories use RJ45 interfaces to build industrial Ethernet. Through PoE (Power over Ethernet) technology, devices such as industrial cameras can also transmit data and receive power via RJ45. In modern security systems, most IP cameras achieve video data transmission through RJ45 interfaces. Its excellent compatibility makes it an ideal choice for connecting various network devices, enabling efficient and stable network communication across different industries​
