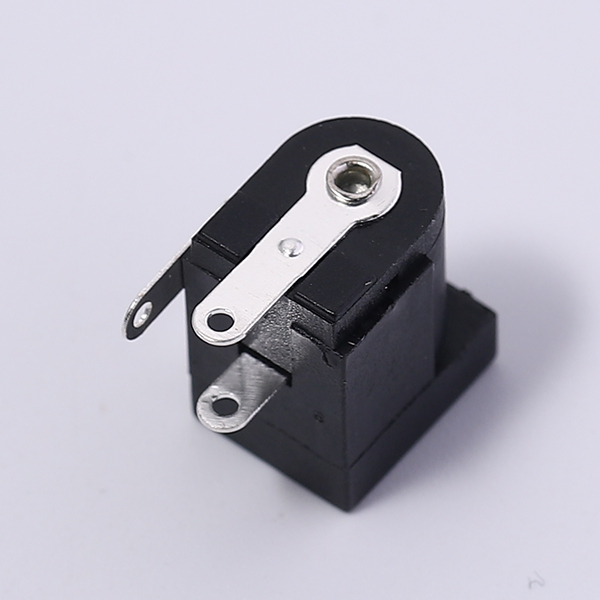

DC ‌ Jack manufacturer.jpg

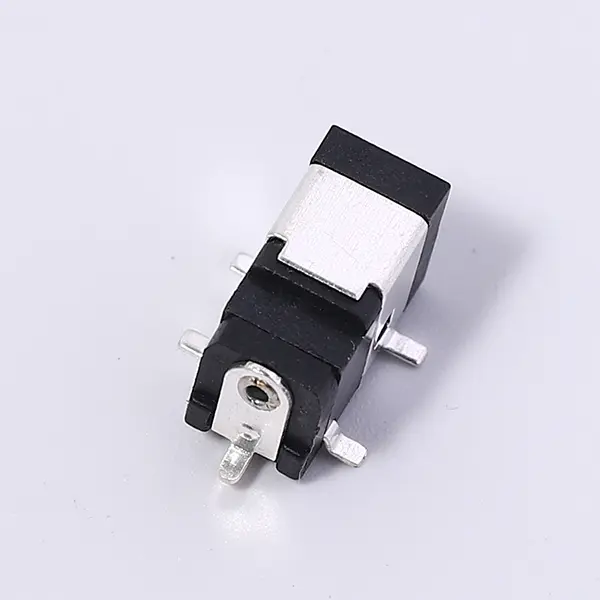

‌DC Port manufacturer .jpg

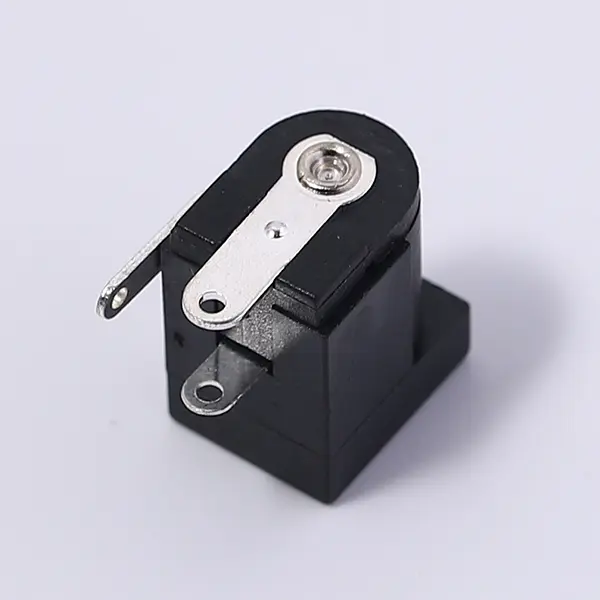

Direct Current Jack manufacturer .jpg
DC ‌ Jack manufacturer.jpg

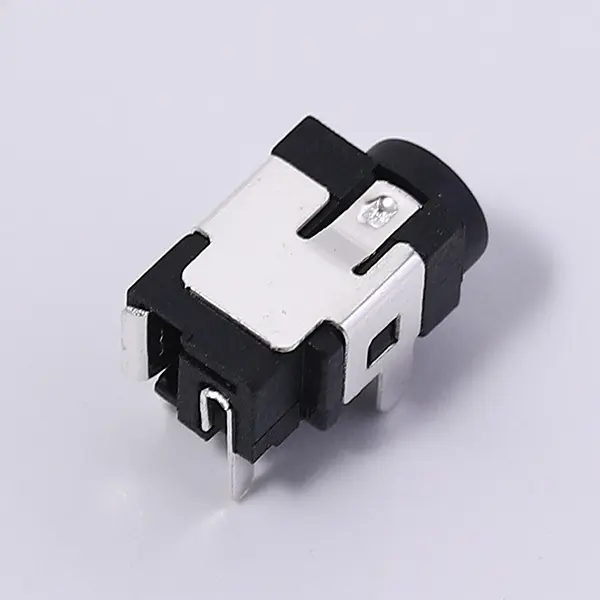

DC Connector manufacturer .jpg
DC ‌ Jack manufacturer .jpg

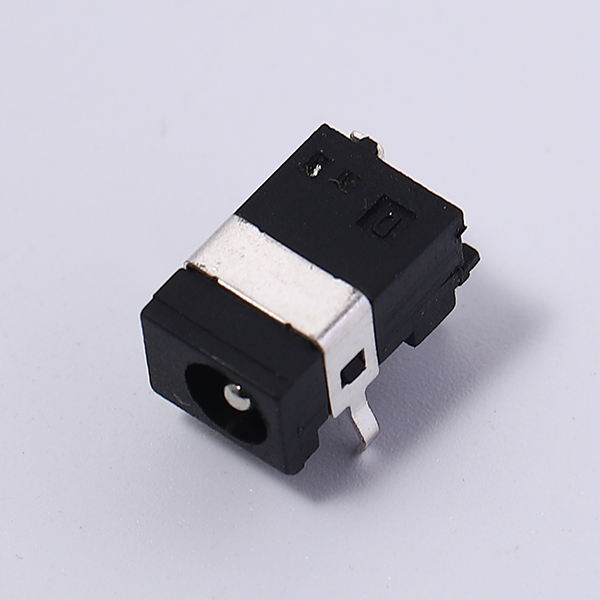

DC Connector .jpg
DC socket.jpg
DC ‌ Jack .jpg

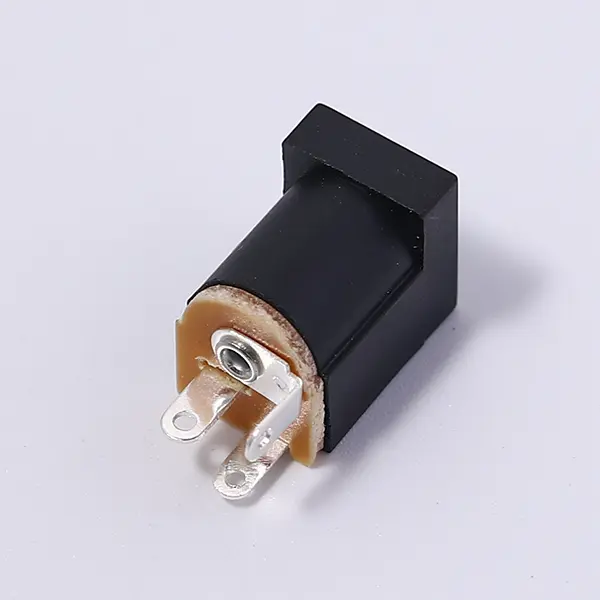

‌DC Port.jpg
Direct Current Jack .jpg
DC ‌ Jack .jpg

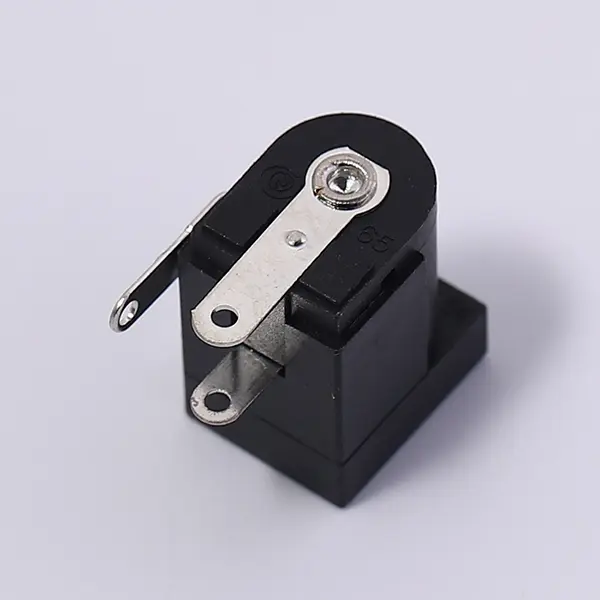

DC Power Connector.jpg
DC Power Connector manufacturer .jpg
Direct Current Jack.jpg
Direct Current Jack supplier.jpg

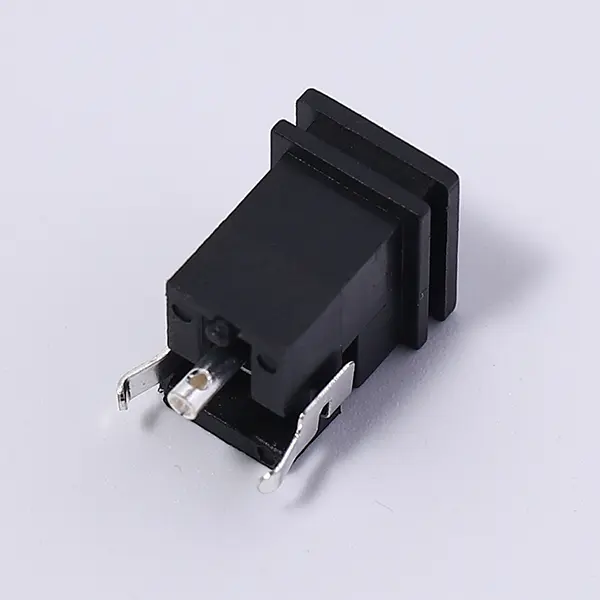

‌DC Port supplier.jpg
‌DC Port supplier.jpg

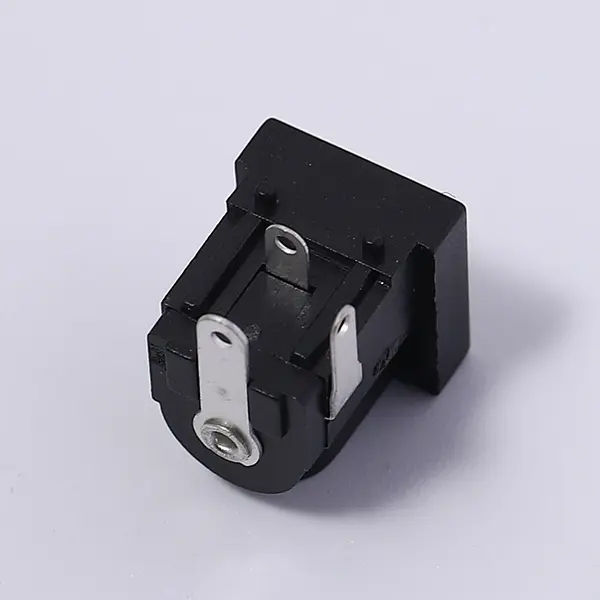

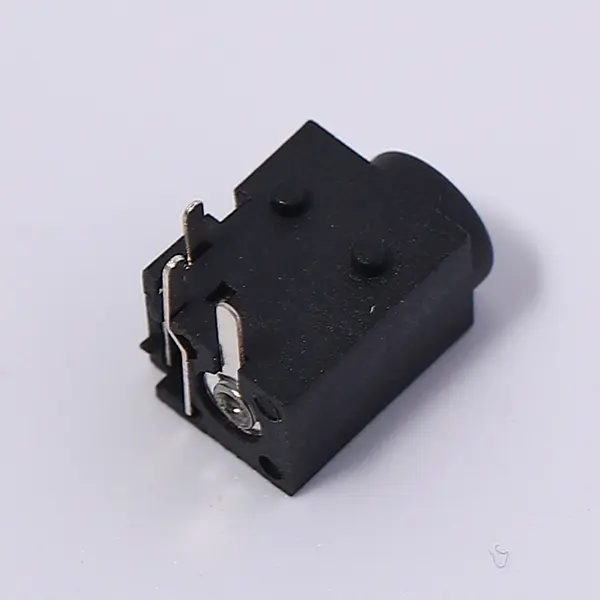

DC Connector (DC Power Connector)

The key interface for power transmission is designed specifically for DC power supply systems to achieve safe and reliable connection between equipment and power sources. Adopting copper alloy nickel/gold plated contacts, supporting 2.5A~30A current loads, with a withstand voltage of up to 500V, equipped with anti misoperation structure and quick locking mechanism, widely used in consumer electronics, industrial equipment, new energy systems and medical instrument fields, it is the core component to ensure stable power supply of equipment.

    Contact us
    product details

    Application Section

    DC Connector (DC Power Connector)20
    01
    Consumer Electronics
    Fast charging device: mobile phone/laptop adapter port, supporting PD3.1 protocol 100W power transmission.
    Home appliance power supply: Smart speaker/router DC input interface, anti electric shock design in accordance with IEC 62368 standard.
    DC Connector (DC Power Connector)19
    01
    Industry and Energy
    Industrial control power module: connected to 24V/48V industrial bus, capable of withstanding 10kV surge impact (IEC 61000-4-5).
    Photovoltaic inverter: Outdoor connector protection level IP68, resistant to UV aging for 2000 hours.
    DC Connector (DC Power Connector)18
    01
    Transportation
    Electric vehicle charging: The high current version supports CHAdeMO/CCS standards, with a temperature rise of<30 ℃ and a continuous load of 30A.
    Rail transit: Fire resistant connectors meet the EN 45545-2 HL3 rating.
    DC Connector (DC Power Connector)17
    01
    Medical Equipment
    Medical imaging system: Redundant contact design ensures zero power interruption for ICU equipment.
    Portable monitor: Magnetic DC interface supports one handed blind insertion operation.

    Function Introduction

    DC Connector (DC Power Connector)12
    01
    High Current Carrying Capacity
    Silver plated contacts reduce contact resistance (<10m Ω), and the 30A version has a temperature rise of ≤ 40 ℃ (ambient 25 ℃).
    The insulation has a CTI resistance of ≥ 600V and complies with UL 1977/IEC 60512 standards.
    DC Connector (DC Power Connector)13
    01
    Security Protection Mechanism
    Polarity anti reverse insertion design (inner hole/outer needle shaped structure), with a protection force of over 50N against accidental insertion.
    The version with locking buckle has a tensile strength of ≥ 80N and seismic performance in accordance with MIL-STD-202G standard.
    DC Connector (DC Power Connector)14
    01
    Quick Connection and Maintenance
    Push pull/thread coupling method, with a insertion and extraction cycle of>5000 times.
    Configurable LED power indicator light (voltage range 3-48VDC).
    DC Connector (DC Power Connector)15
    01
    Environmental Adaptability
    Fully sealed silicone ring structure (IP67/IP69K), resistant to high-pressure water gun cleaning.
    The high-temperature resistant model shell is made of PPS material (continuous working temperature of 200 ℃).
    DC Connector (DC Power Connector)16
    01
    Multi Specification Compatibility
    Standard caliber 5.5 × 2.1mm/3.5 × 1.35mm, optional aviation plug/PCB direct welding type.
    Support customized 24V/48V system specific interfaces, including EMI filtering function.
