DC Power Jack: The Critical Connection Hub for Device Power Supply

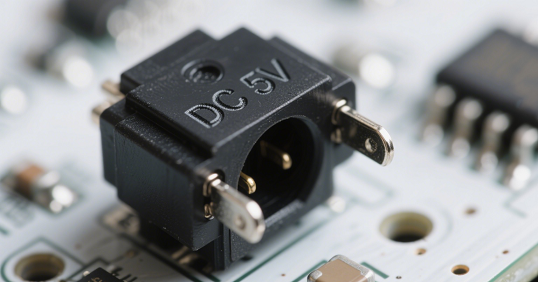

In terms of product types, DC Power Jacks can be divided into various specifications and models based on the needs of application scenarios. The common vertical in-line type is suitable for device enclosures with sufficient space, such as desktop computer monitors and small printers. Its stable insertion structure can effectively prevent power supply interruptions caused by accidental collisions. On the other hand, the horizontal side-insert type is more suitable for thin and light devices like laptops and portable projectors; its compact design minimizes the occupation of internal device space. Additionally, for outdoor or industrial environments, waterproof and dustproof DC Power Jacks have been launched. With a protection level of IP65 or above, they can resist the impact of harsh environments such as moisture and dust, ensuring stable power supply for outdoor monitoring equipment and industrial control terminals under complex working conditions.

In terms of performance, high-quality DC Power Jacks have multiple advantages. Firstly, their contact terminals are made of highly conductive brass or phosphor bronze, and undergo gold-plating or nickel-plating treatment. This not only reduces resistance loss during current transmission but also effectively prevents oxidation and rusting, extending the service life. Secondly, the insulating housing at the interface is mostly made of high-temperature-resistant PA66 engineering plastic, which can withstand the high temperature generated during device operation and avoid short-circuit risks caused by housing deformation. Taking the consumer electronics field as an example, a qualified Dc Power Jack can withstand more than 5,000 insertion and extraction cycles, with a contact resistance of less than 50 milliohms, fully meeting the needs of frequent insertion and extraction and stable power supply standards in daily use.

Beyond the basic power supply function, modern DC Power Jacks are constantly upgrading in terms of safety and intelligence. Some products integrate overcurrent protection and overvoltage protection modules. When the external power supply has current overload or voltage abnormality, these modules can automatically cut off the power supply circuit to protect the internal circuit of the device from damage. In smart home devices, DC Power Jacks with signal feedback functions can also transmit power supply status data in real time, allowing users to remotely monitor the power consumption of devices through APPs.

Whether it is the strict quality control in the production and manufacturing process or the customized design for different industries, DC Power Jacks always provide stable and safe power supply solutions for various electronic devices with reliable performance and diverse specifications, making them an indispensable and important part of electronic devices.
