Pin Header: The "Microscopic Bridge" Connecting the Electronic World

2025-10-17

In terms of structure, the core of aPin Headerconsists of two parts: metal pins and an insulating base. The metal pins are usually made of brass or phosphor bronze, and their surfaces are treated with gold plating, tin plating, etc. This not only improves electrical conductivity but also enhances oxidation resistance, ensuring good contact during long-term use. The insulating base is mostly made of high-temperature-resistant nylon or PBT plastic, which can maintain a stable shape during soldering and equipment operation, preventing short circuits between pins. According to the different arrangement methods of pins, Pin Headers can be divided into single-row, double-row, triple-row and other types. Among them, single-row Pin Headers are widely used in small electronic devices such as Arduino development boards and sensor modules due to their simple structure and convenient installation; while double-row Pin Headers, with their higher pin density, are commonly found in scenarios that require a large amount of signal transmission, such as computer motherboards and industrial control modules.

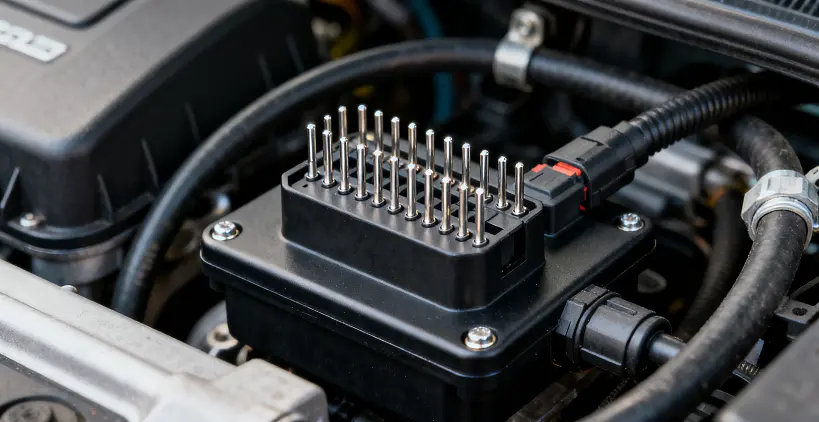

In practical applications, the "adaptability" of Pin Headers is their core advantage. They can be flexibly matched with components such as DuPont wires and terminal blocks, providing engineers with more freedom in circuit design. For example, in smart home devices, temperature and humidity sensors are connected to the main control board through single-row Pin Headers, which not only facilitates plugging, unplugging and replacement during the early debugging stage but also enables permanent fixing through soldering during mass production; in the field of automotive electronics, high-temperature-resistant Pin Headers can stably connect ECUs (Electronic Control Units) with various sensors in harsh environments such as engine compartments, ensuring the real-time transmission of vehicle operation data.

As electronic devices develop towards miniaturization and high integration, Pin Headers are also constantly upgrading. Today, the height of ultra-thin Pin Headers can be as low as 1.0mm, which can meet the space requirements of portable devices such as laptops and smart watches; while anti-loose Pin Headers with a locking structure prevent connection loosening through a buckle design, further improving the reliability of industrial equipment in vibrating environments.

Although Pin Headers seem unremarkable, they are actually indispensable "connectors" in electronic systems. With their precise structure and stable performance, they silently support the operation of various electronic devices and have become an important microscopic cornerstone for building the digital world.
