TPYE-C Connector
TYPE-C 05
01

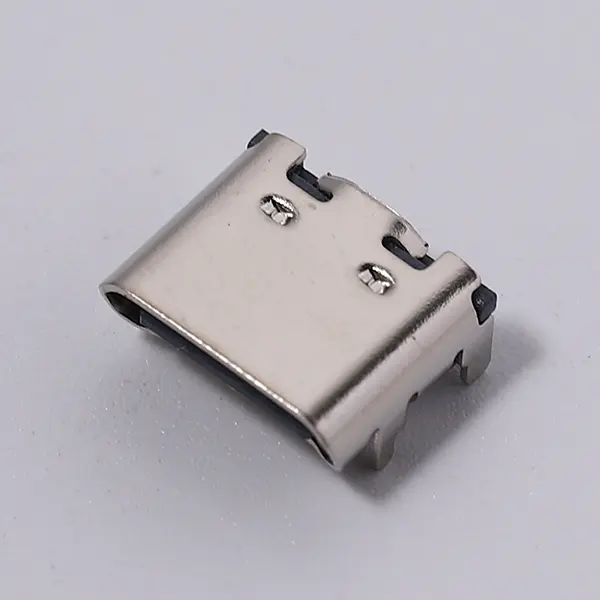

The TYPE-C 05 SMD Female Connector is a core connectivity component designed for consumer electronics and portable devices. With its compact structure and versatile compatibility, it has become one of the mainstream choices for charging and data interaction modules in modern devices.
01
Equipped with a standard 16-pin configuration, this product is fully compatible with the USB 3.1 Gen1 protocol, supporting high-speed data transfer of up to 5Gbps—enabling 1GB file transmission in approximately 3 seconds. It also adapts to the PD3.0 fast-charging protocol, delivering a peak power output of 20V/5A (100W), which not only meets the rapid charging needs of smartphones but also caters to the power supply requirements of thin and light laptops. Additionally, certain specifications support simultaneous transmission of 4K@30Hz high-definition video signals, achieving an integrated "all-in-one cable" experience that combines charging, data transfer, and video output.
01
In terms of structural design, the TYPE-C 05 features a brass nickel-plated metal housing that provides dual functions of physical protection and electromagnetic shielding, effectively reducing external signal interference and ensuring stable transmission. The four-pin positioning terminals are manufactured using an integrated stamping process, and when combined with SMD (Surface Mount Device) technology, the connection pull-out force after soldering to the PCB board exceeds 50N, significantly minimizing the risk of loosening caused by long-term insertion and extraction. Its reversible plug-and-play design eliminates the need for "alignment" during use, greatly enhancing user convenience.
01
Regarding durability, the product has passed over 5000 insertion/extraction cycle tests and operates within a wide temperature range of -40℃ to 85℃, making it suitable not only for daily consumer electronics scenarios but also for the complex environments of portable industrial terminals. It adopts automated SMD production, with dimensional accuracy controlled within ±0.02mm, ensuring excellent batch consistency. Moreover, it complies with USB-IF association compatibility standards, seamlessly matching the hardware design specifications of mainstream devices.
01
From smartphones and tablets to wireless charging cases and portable industrial control devices, the TYPE-C 05 consistently delivers stable and efficient performance as the "data and power hub" of devices. It helps terminal products achieve streamlined interface designs and enhanced user experiences, making it an ideal connectivity solution for manufacturers pursuing reliability, versatility, and user-centric design.
