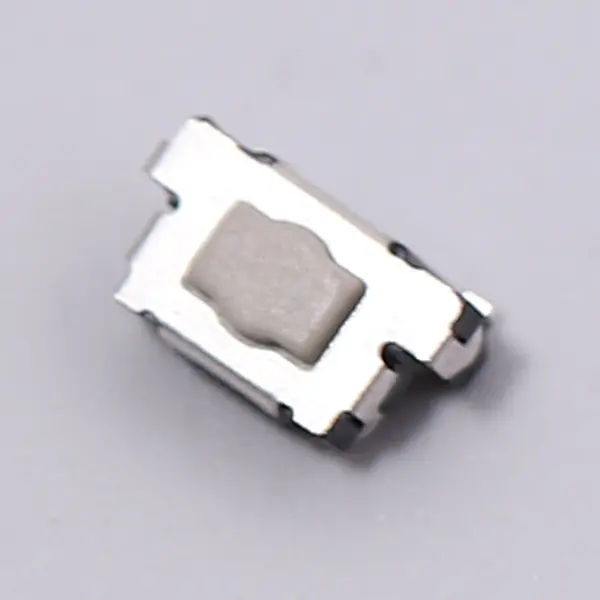

KFC Tactile Switch
Y1-02-2
01
A tact switch is a non-locking electronic component that achieves circuit on-off through brief pressing. Its core advantage lies in the immediate responsiveness of pressing and resetting - when triggered, the circuit is instantly turned on, and it automatically returns to the off state when released, providing precise human-computer interaction control for electronic devices. This feature makes it perform excellently in scenarios requiring frequent and short-term operations, avoiding the trouble of continuous pressing while enabling rapid command transmission.
The product is widely used in smart home control panels, such as smart light switches and curtain controllers, allowing users to easily control home devices; it also plays an important role in car central control buttons, such as air conditioning adjustment and volume control functions relying on it; the side keys of digital products, such as the power button and volume button of mobile phones, are also common applications. With its miniaturized design (minimum size 3.2×2.5mm) and non-locking feature, the tact switch has become a core component for realizing high-frequency and short-trigger operations in compact electronic devices, providing strong support for the convenient use of various electronic devices.
01
Its structure consists of a base, a shrapnel, and a key cap, with all components working together to ensure stable operation. The base, as the basic support, is usually made of high-temperature resistant plastic material, which can adapt to temperature changes when electronic devices are working; the shrapnel is mostly made of copper alloy, which has good conductivity and elasticity, ensuring the sensitivity of circuit on-off; the key cap can be made of materials such as ABS or silicone, which affects the tactile feel when pressed. The packaging forms are divided into Surface Mount Device (SMD) and Dual In-line Package (DIP), adapting to various PCB board installation requirements. The thickness of the SMD type can be as low as 0.5mm, suitable for micro devices such as smart watches and Bluetooth headsets; the pin length of the DIP type is 5-10mm, which is more suitable for traditional circuit designs such as home appliance control panels.
01
Key performance parameters directly affect the user experience: a stroke of 0.15-0.4mm determines the pressing feedback force. Too short a stroke may lead to unobvious operation, while too long a stroke will increase the difficulty of operation; operating force of 100-350gf is suitable for different scenario needs. For example, electronic toys used by children may choose models with smaller operating force, while switches on industrial equipment need larger operating force to prevent misoperation; service life of 500,000-1,000,000 times ensures long-term stable operation, and this indicator enables it to meet the service life requirements of most electronic devices. Special models achieve IP67 waterproof rating through silicone sealing rings, which can cope with humid environments such as kitchens and bathrooms, and can work normally even when splashed with water.
